Hot rolling thread rolling machine railway spike screw making machine railway bolts making machine

  • >=1 Sets
    $33,580.00
Model Number:
FD-30D
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Application:
Railway Industry
Production Capacity:
20Pcs/Min
Showroom Location:
None
Brand Name:
FEDA
Power:
22KW
Dimension(L*W*H):
4560*1860*1350mm(L*H*W)
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Key Selling Points:
Automatic
Local Service Location:
None
Applicable Industries:
Manufacturing Plant, Construction works , Fasterner
After-sales Service Provided:
Engineers available to service machinery overseas
Diameter:
12.7-27mm
Pitch:
6-13mm
Length:
Max.300mm
Spindle speed:
280rpm
Outside diameter of rolling die:
80.5mm
Inside diameter of rolling die:
39mm
Thickness of rolling die:
60mm
Output(pcs/min):
10-15(pcs/min)
Supply voltage:
AC380V / 50HZ
Condition:
New
Voltage:
380V
Weight:
4680KG
Certification:
CE
Warranty:
12 months
Supply Ability
Supply Ability:
5 Set/Sets per Week
Packaging & Delivery
Packaging Details
Wooden case for exporting
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 30 To be negotiated
Video Description

Hot rolling thread rolling machine railway spike screw making machine railway bolts making machine



Features:

1. Hot rolling with automatic feeders

2. Specially for railway bolts and spikes

3. Automatic loading devices can be installed

4. ISO 9001-2008, CE



Parameters:

Diameter for the threads rolledΦ12.7-Φ27
Range of pitch rolled6mm-13mm
Length of thread rolledMax.300mm
Spindle speed280rpm
Outside diameter of rolling dieφ80.5mm
Inside diameter of rolling dieφ39mm
Thread rolling Die Length60mm
Output(pcs/min)10-15(pcs/min)
Main power motor22KW
Supply voltageAC380V / 50HZ
Weight(reference)4680KG
Motor Dimension110*130*90mm(L*H*W)
Machine Dimension(L*W*H)4560*1860*1350mm(L*H*W)

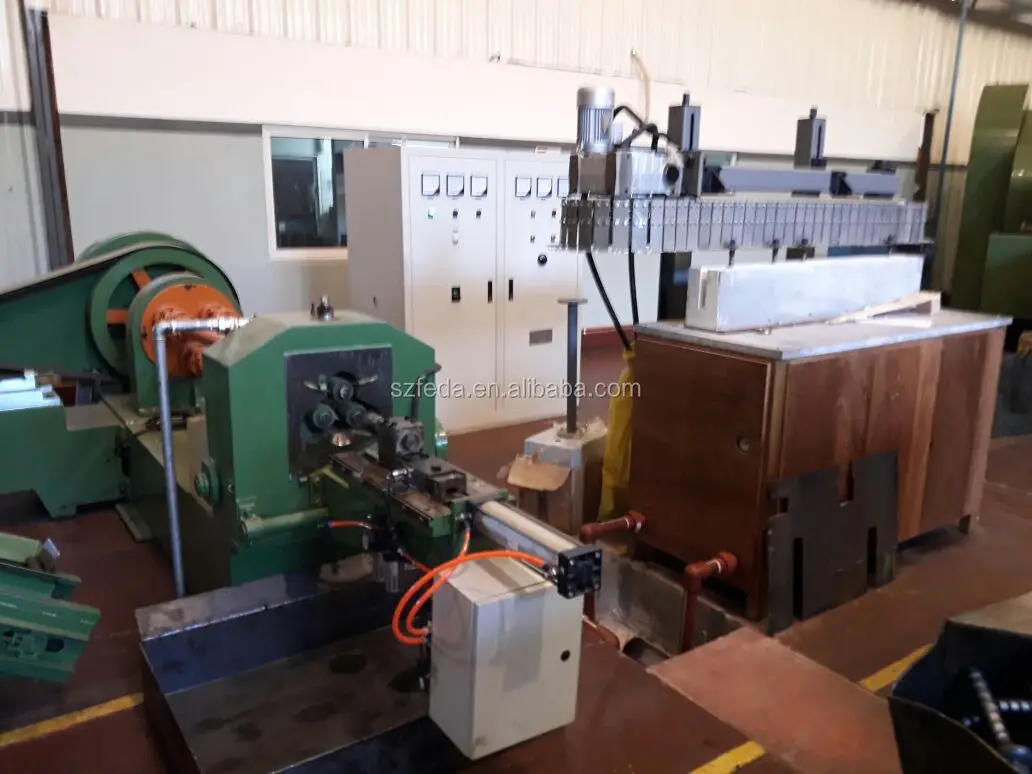

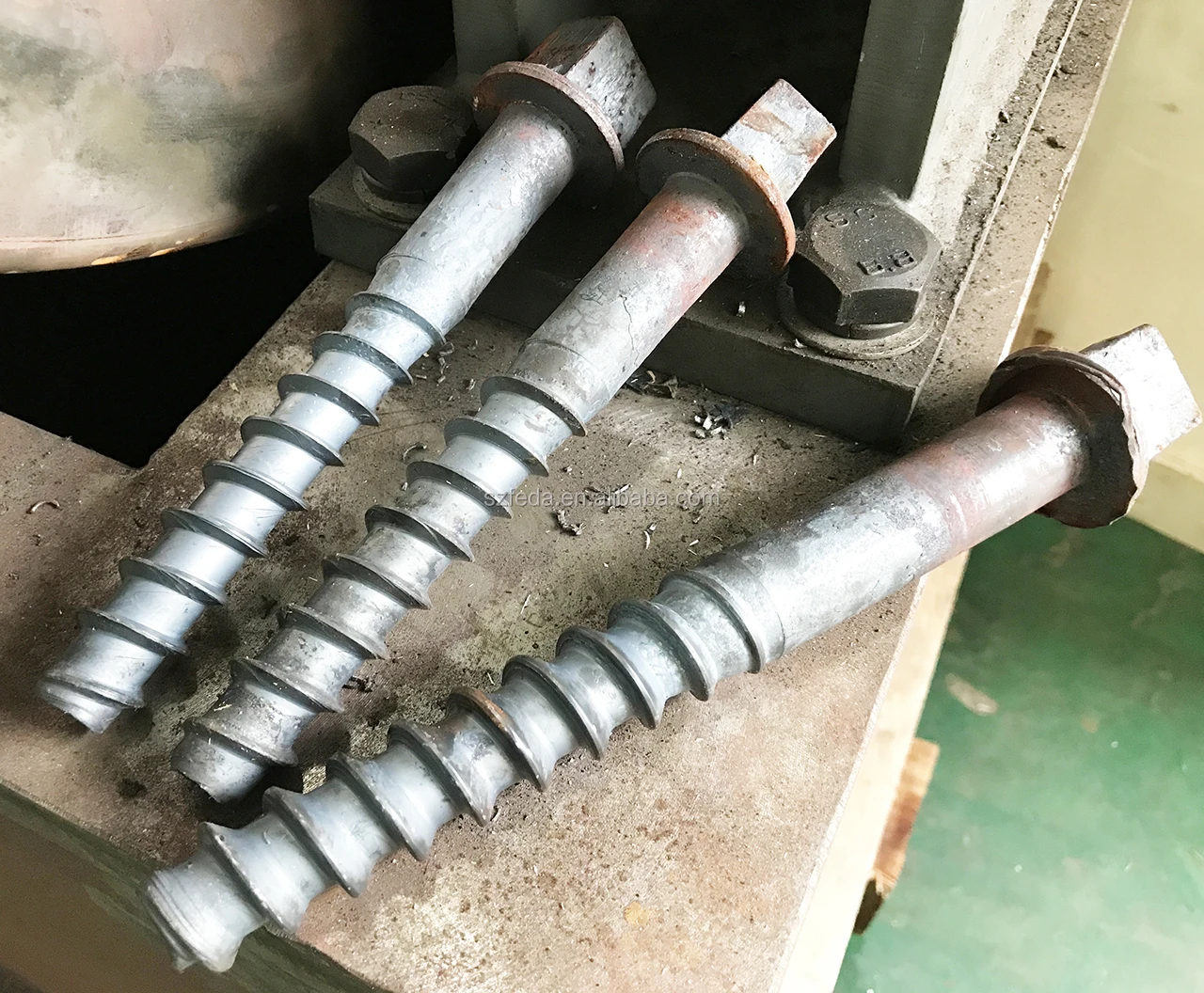

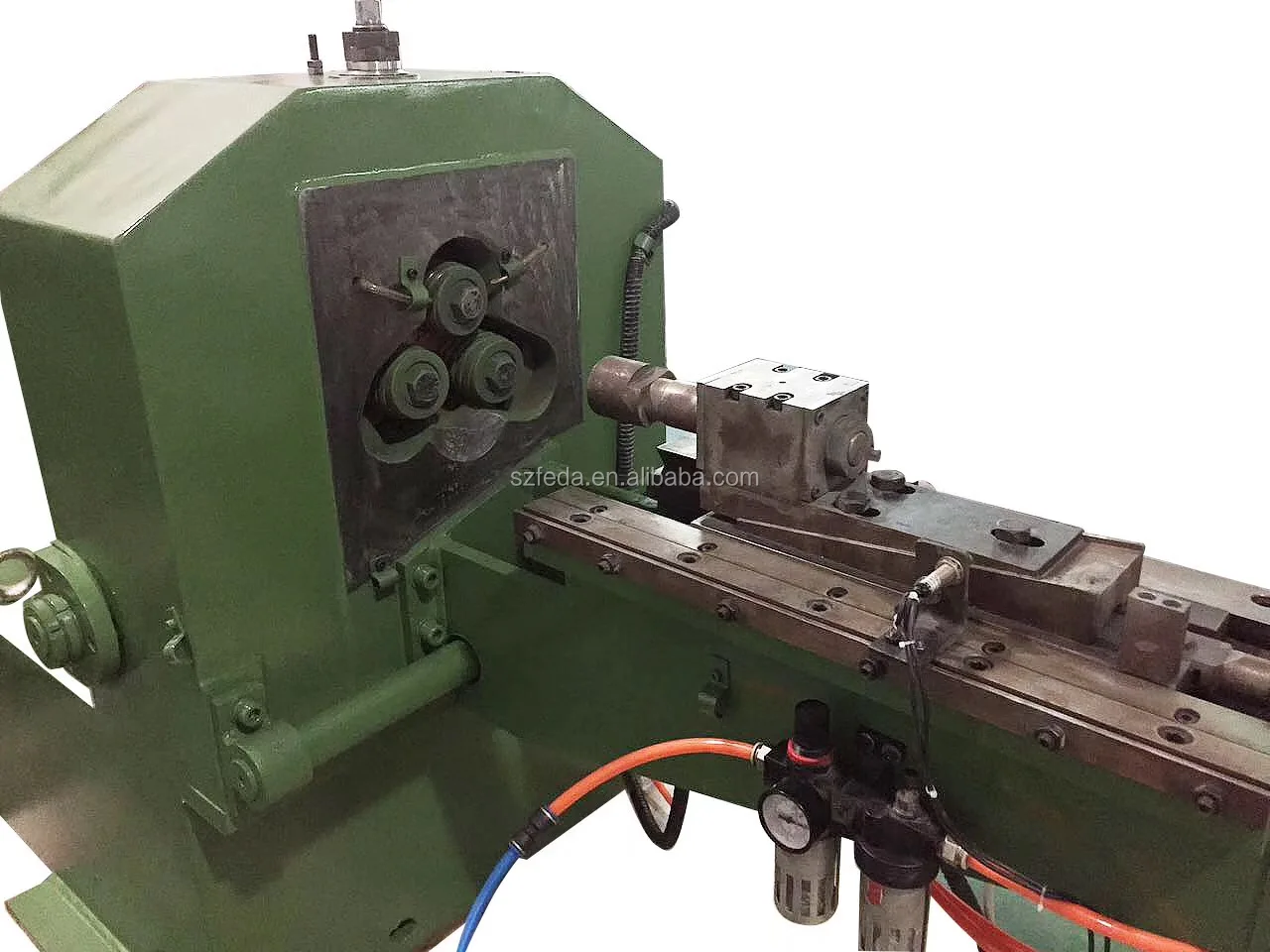

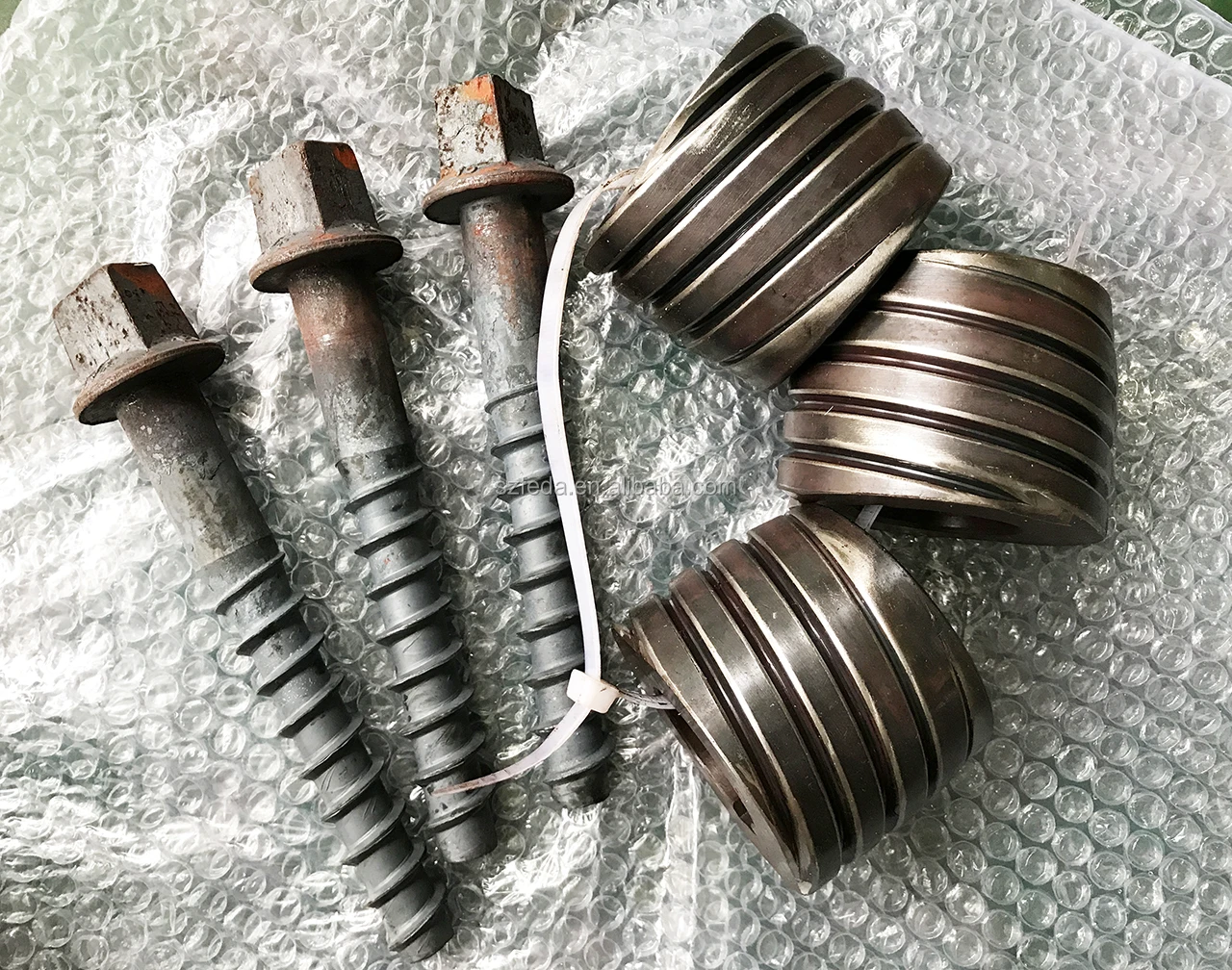

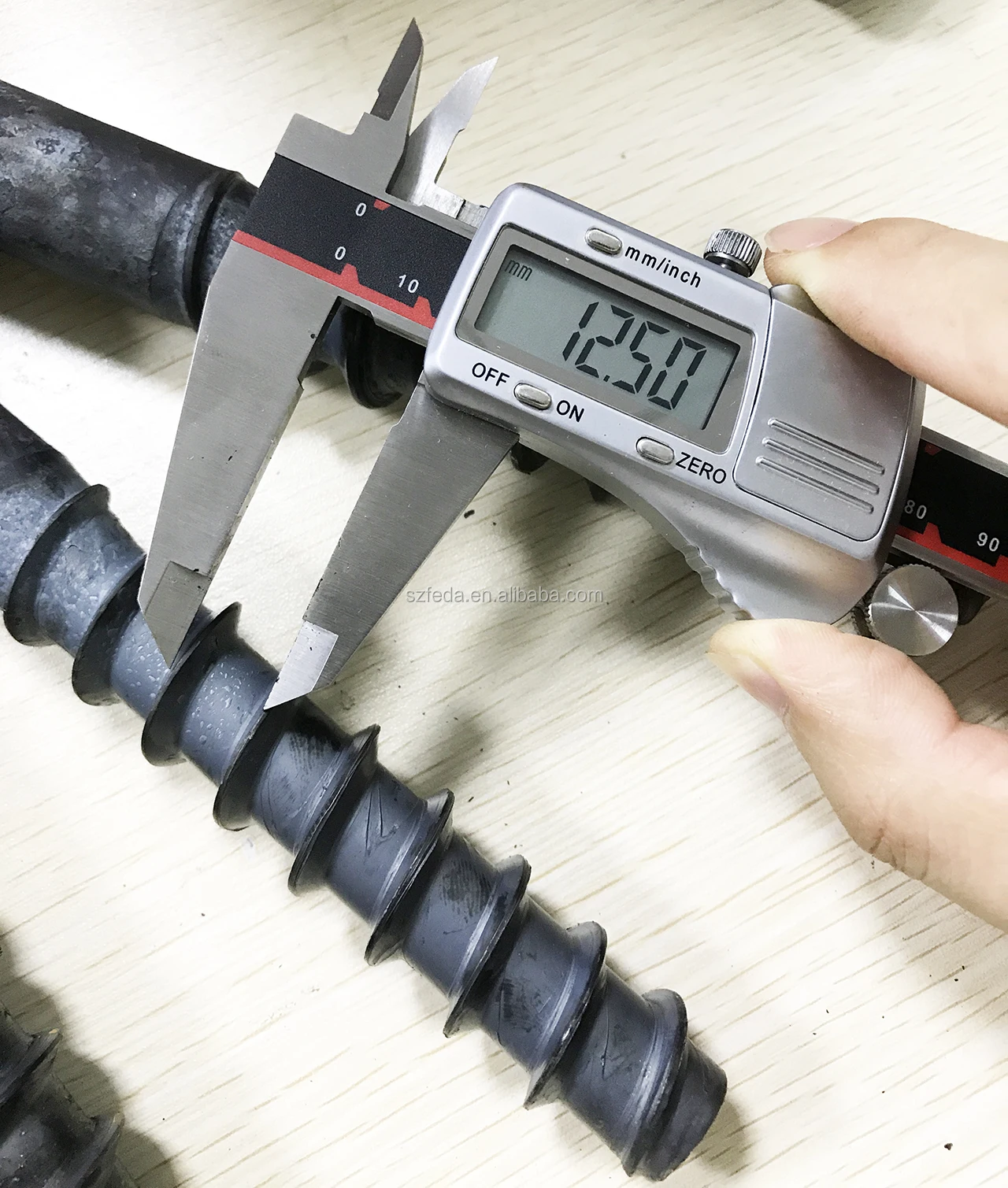

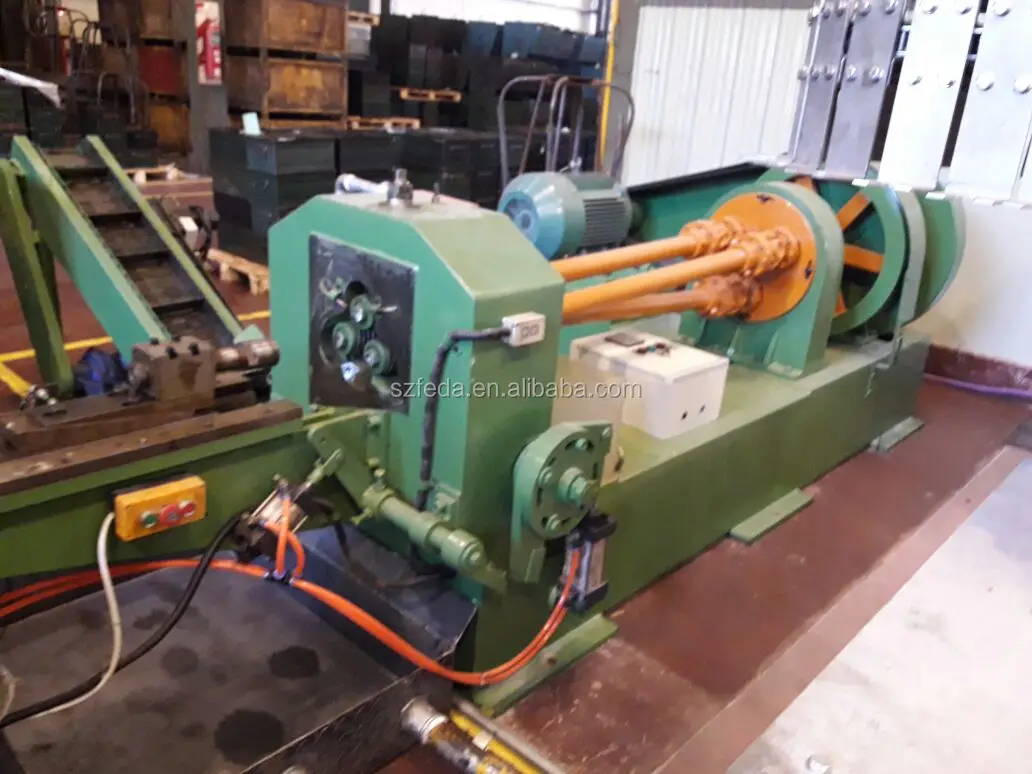

Product Pictures:
