Automatic thread rolling machine rebar thread rolling machine two roller thread making machine

  • 1 - 1 Sets
    US $11380.00
  • >=2 Sets
    US $11000.00
Model Number:
FD28-200
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Rebar, thread rods
Production Capacity:
700-1200mm/min
Place of Origin:
China
Brand Name:
FEDA
Voltage:
380V 3P 50Hz
Power(W):
11KW
Dimension(L*W*H):
1790*1730*1430 mm
Weight:
3200(KG)
Certification:
CE
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
automatic thread rolling machine
Working diameter:
5-65mm
Thread pitch:
0.8-8.0mm
Thread length:
In feed or Thru feed
Hydraulic motor:
5.5KW
Max rolling pressure:
20T
Outside diameter of rolling die:
145-220mm
Inside diameter of rolling die:
75mm
Thickness of rolling die:
150mm
Bearing brand:
NSK UBC
Supply Ability
Supply Ability:
10 Set/Sets per Week automatic thread rolling machine
Packaging & Delivery
Packaging Details
Wooden case only for exporting
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 20 To be negotiated

Automatic thread rolling machine rebar thread rolling machine two roller thread making machine



Features:

1. Heavy duty thread rolling machine with 20T rolling pressure

2. 75mm main shaft diameter with carburizing

3. In feed and thru feed type are both ok for this machine

4. High precision, stability and high durability

5. CE, ISO9001-2008

6. It is to operate and maintain the machine



Parameters:

Working diameter φ5-φ65mm
Thread pitch0.8-8.0mm
Thread lengthIn feed or Thru feed
Spindle speed16/25/40/63rpm (variable speed)
Outside diameter of rolling dieφ145-φ220mm
Inside diameter of rolling dieφ75mm
Thickness of rolling die150mm
Distance between the roller shaft150-300mm
Output(pcs/min)4-25(pcs/min)
Main power motor11KW
Hydraulic motor5.5KW
Max rolling pressure20T
Supply voltage380V 3P 50Hz
Weight(reference)3200(KG)
Package Dimension(L*W*H)1800*1740*1440 mm
Dimension(L*W*H)1790*1730*1430 mm

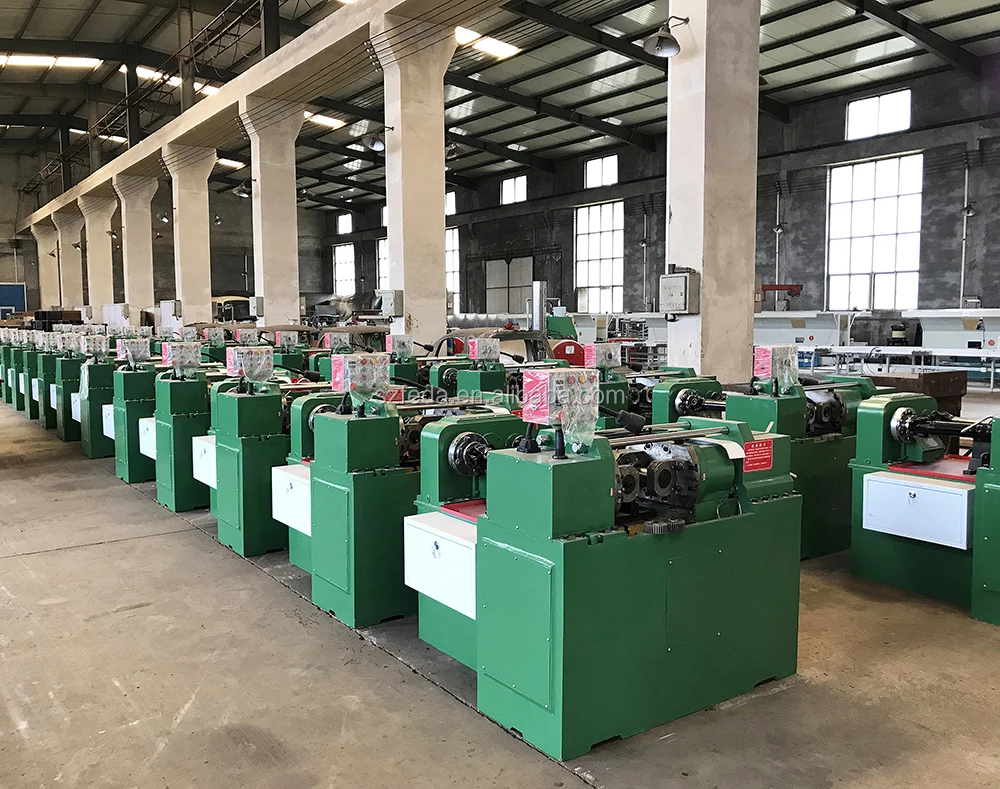

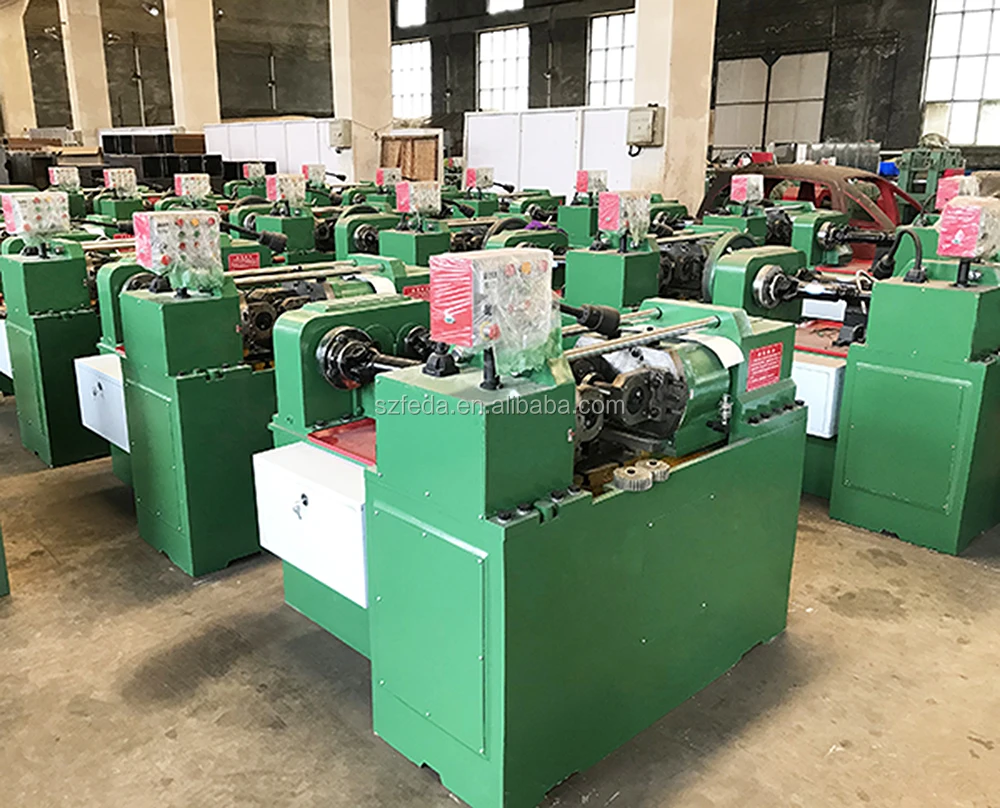

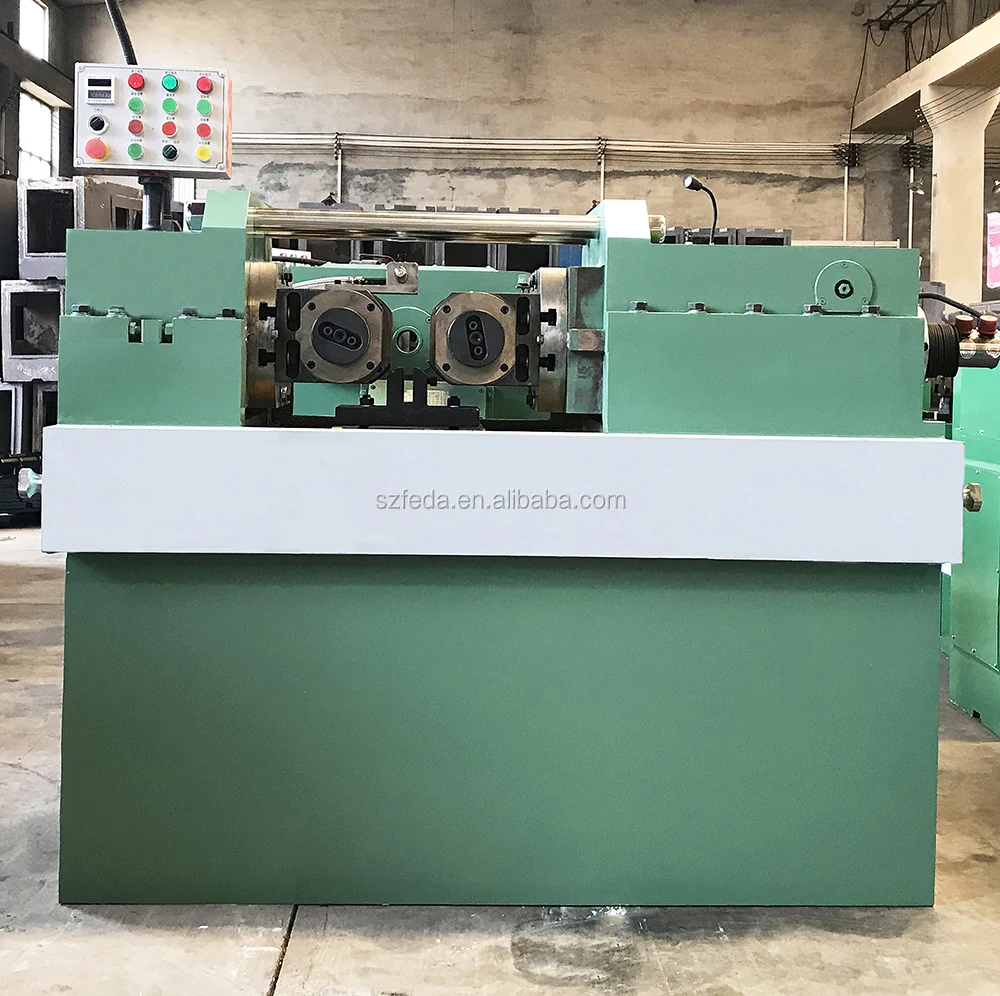

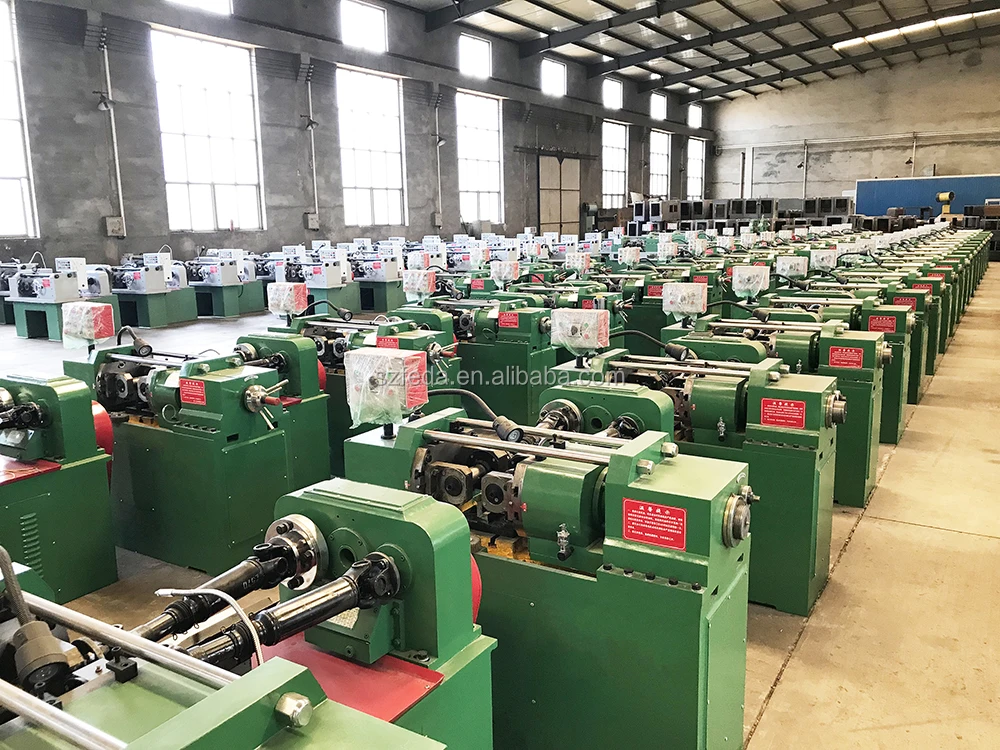

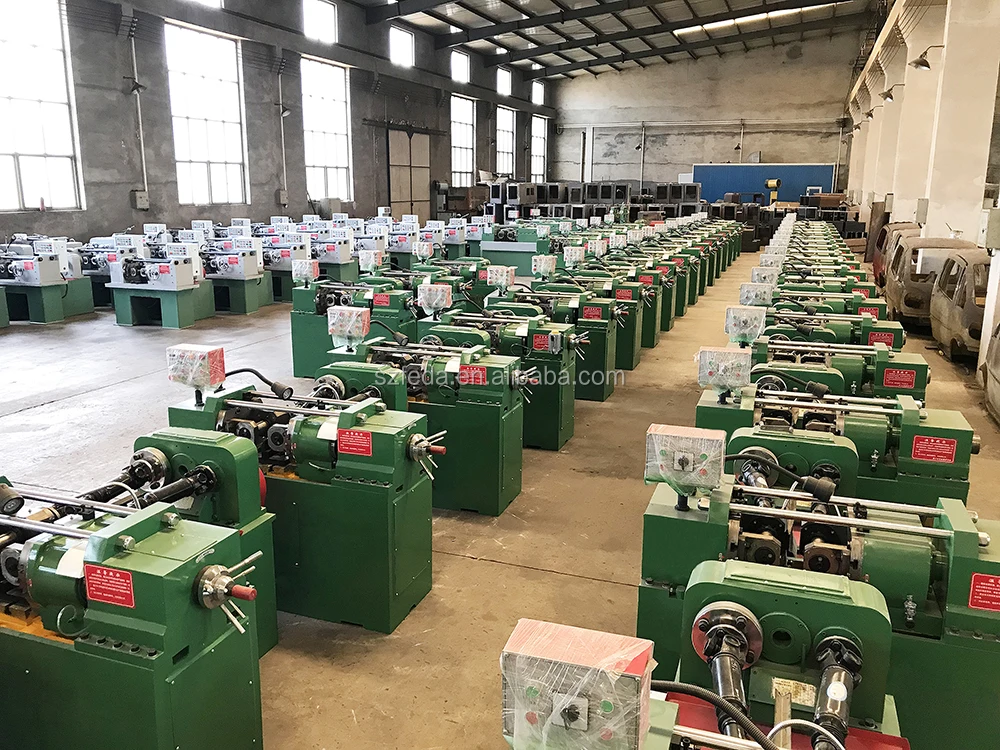

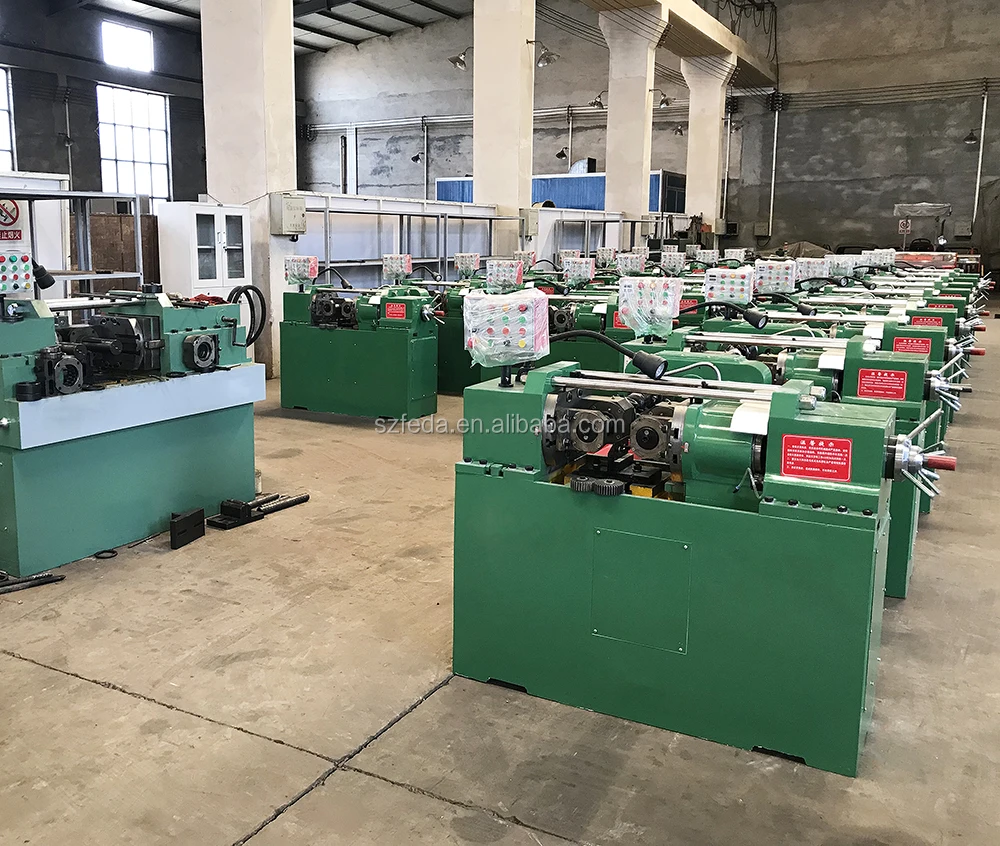

Pictures:

IMG_9524IMG_9525IMG_9536IMG_9530


Package:

IMG_0192IMG_0198

Customer Cases:

IMG_5882IMG_20160803_170939
