Flat dies screw making machine high speed thread rolling machine vertical type thread making machine

  • 1 - 1 Sets
    US $3980.00
  • >=2 Sets
    US $3680.00
Model Number:
FD-208F
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Screw, bolt, fastener
Production Capacity:
60 pcs/min
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FEDA
Voltage:
380V 3P 50Hz
Power(W):
3 KW
Dimension(L*W*H):
1150*1350*960mm
Weight:
650 KG
Certification:
CE
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Green or customized
Working diameter:
5-12mm
Thread pitch:
0.8-2.0mm
Max.Thread length:
75mm
Fixed dental board size:
190*70*120mm
Moving dental board size:
215*70*120mm
Cooling system:
Optional
Bearing brand:
NSK UBC
Thread Angle:
55 or 60 Degree
Max rolling pressure:
3T
Supply Ability
Supply Ability:
10 Set/Sets per Week flat dies screw making machine
Packaging & Delivery
Packaging Details
Wooden case only for exporting
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 15 To be negotiated

Flat dies screw making machine high speed thread rolling machine vertical type thread making machine



Features:

1. Automatic feeding with bars bracket

2. High speed at 50-60 pcs/min

3. Usually for making thread tods within 500mm length

4. It is easy to opearte and maintain the machine

5. CE, ISO9001-2008



Parameters:

ColorGreen or customized
Working diameter5-12mm
Thread pitch0.8-2.0mm
Max.Thread length75mm
Fixed dental board size190*70*120mm
Moving dental board size215*70*120mm
Power voltage380V 3P 50Hz
Capacity50-60 pcs/min
Cooling systemOptional
Main motor3 KW
Weight650 KG
Dimension(L*W*H)1150*1350*960mm
Package size(L*W*H)1160*1360*970mm

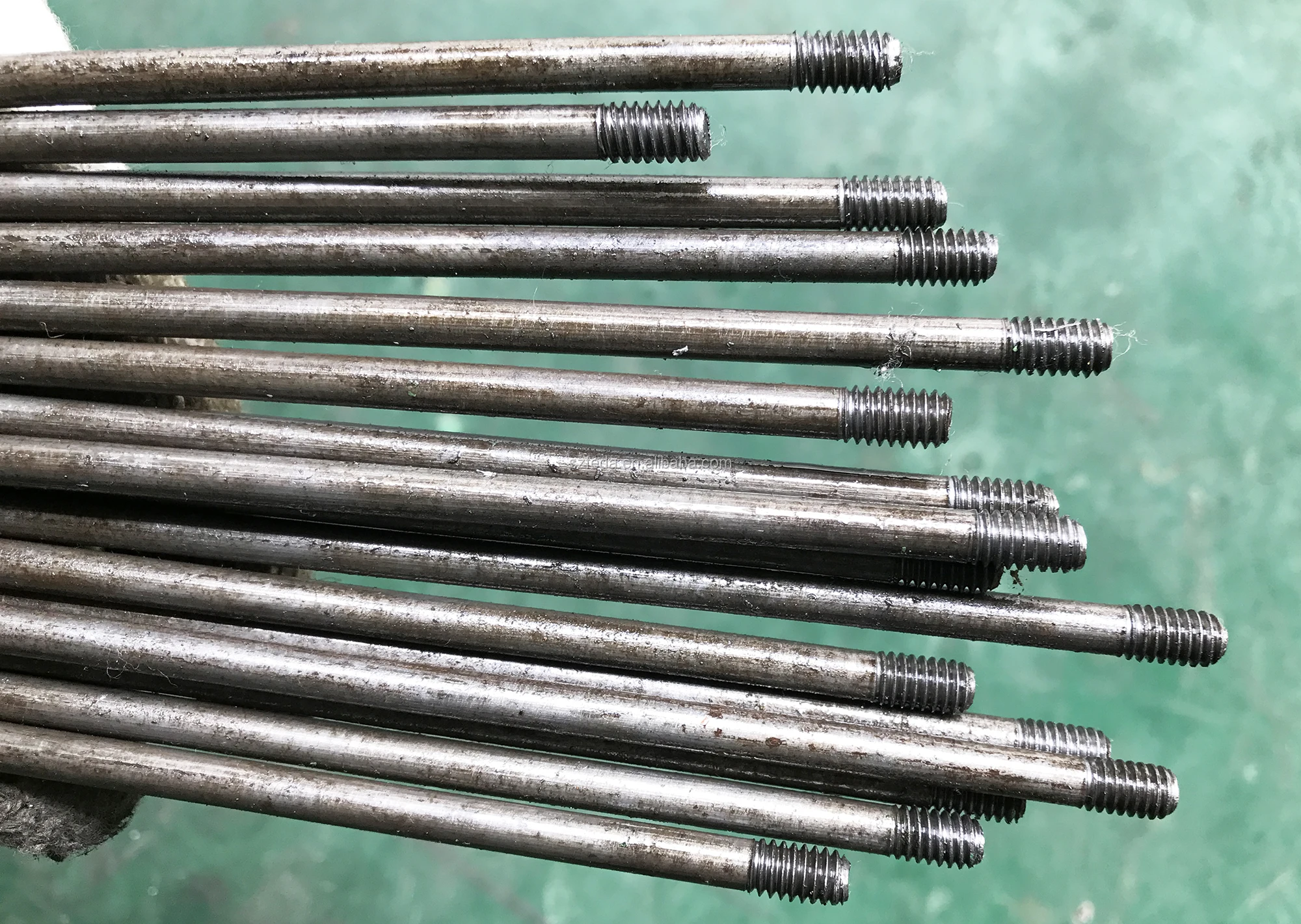

Pictures:

CSJ-17CSJ-21CSJ-18CSJ-07CSJ-08IMG_5129IMG_5128

Package:

IMG_2182IMG_2533IMG_0192

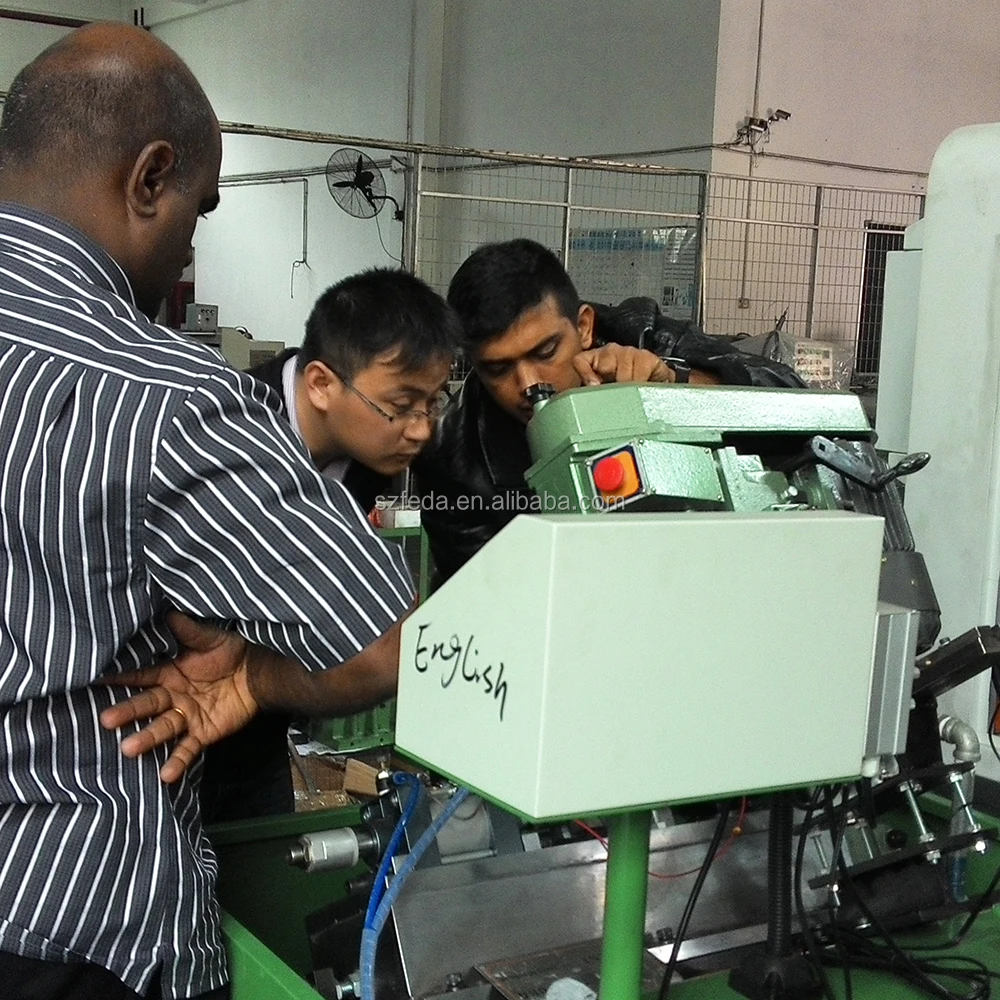

Customer Cases:

mmexport1458282656233mmexport14582826591322018002
