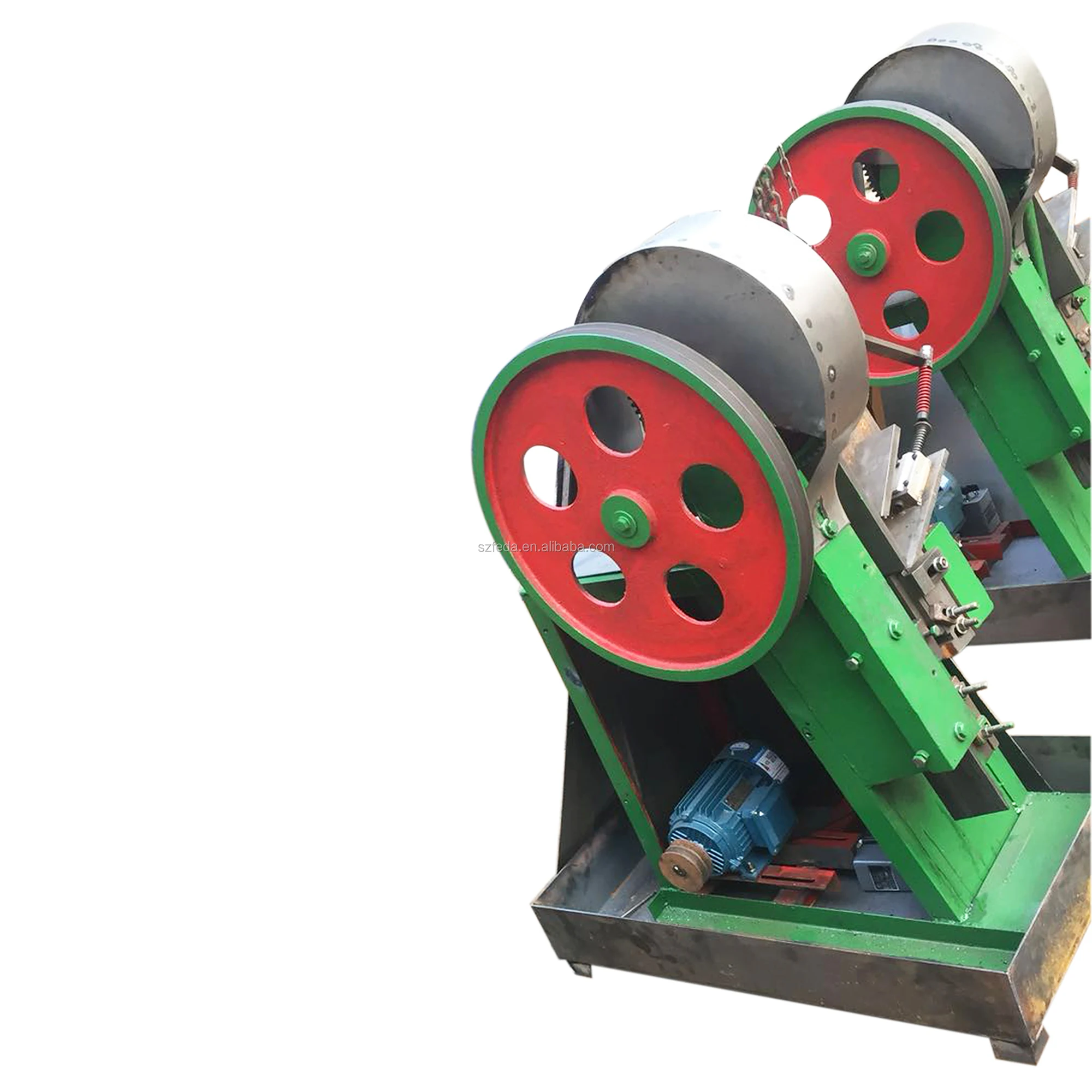

High speed thread rod thread making machine vertical thread rolling machine flat dies

  • >=1 Sets
    US $3980.00
Model Number:
FD-208F
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Fasteners, thread rods
Production Capacity:
50-60 pcs/min
Place of Origin:
China
Brand Name:
FEDA
Voltage:
380V 3P 50Hz
Power(W):
3KW
Dimension(L*W*H):
1150*1350*960mm
Weight:
650 KG
Certification:
CE
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
thread rod thread making machine
Color:
Green or customsied
Working diameter:
5-12mm
Thread pitch:
0.8-2.0mm
Max.Thread length:
75mm
Capacity:
50-60 pcs/min
Cooling system:
Optional
Dies type:
Flat dies
Loading method:
Automatic feeding
Package:
Wooden case
Supply Ability
Supply Ability:
10 Set/Sets per Week thread rod thread making machine
Packaging & Delivery
Packaging Details
Wooden case only for exporting
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 15 To be negotiated

High speed thread rod thread making machine vertical thread rolling machine flat dies



Features:

1. High speed at 50-60 pcs/min

2. Flat dies type thread rolling machine

3. Cooling system is optional

4. Cold rolling extrusion without any scraps

5. Protection cover is installed for safety



Parameters:

ColorGreen or customsied
Working diameter5-12mm
Thread pitch0.8-2.0mm
Max.Thread length75mm
Fixed dental board size190*70*120mm
Moving dental board size215*70*120mm
Power voltage380V 3P 50Hz
Capacity50-60 pcs/min
Cooling systemOptional
Main motor3KW
Weight650 KG
Dimension(L*W*H)1150*1350*960mm
Package size(L*W*H)1160*1360*970mm



Pictures:

CSJ-06.jpgCSJ-07.jpgCSJ-08.jpgCSJ-10.jpgCSJ-14.jpgCSJ-15.jpgCSJ-16.jpgCSJ-21.jpgIMG_5129.JPG

Package:

IMG_0879IMG_0939IMG_0192

Customer Cases:

mmexport1458282659132IMG_20160803_170939
