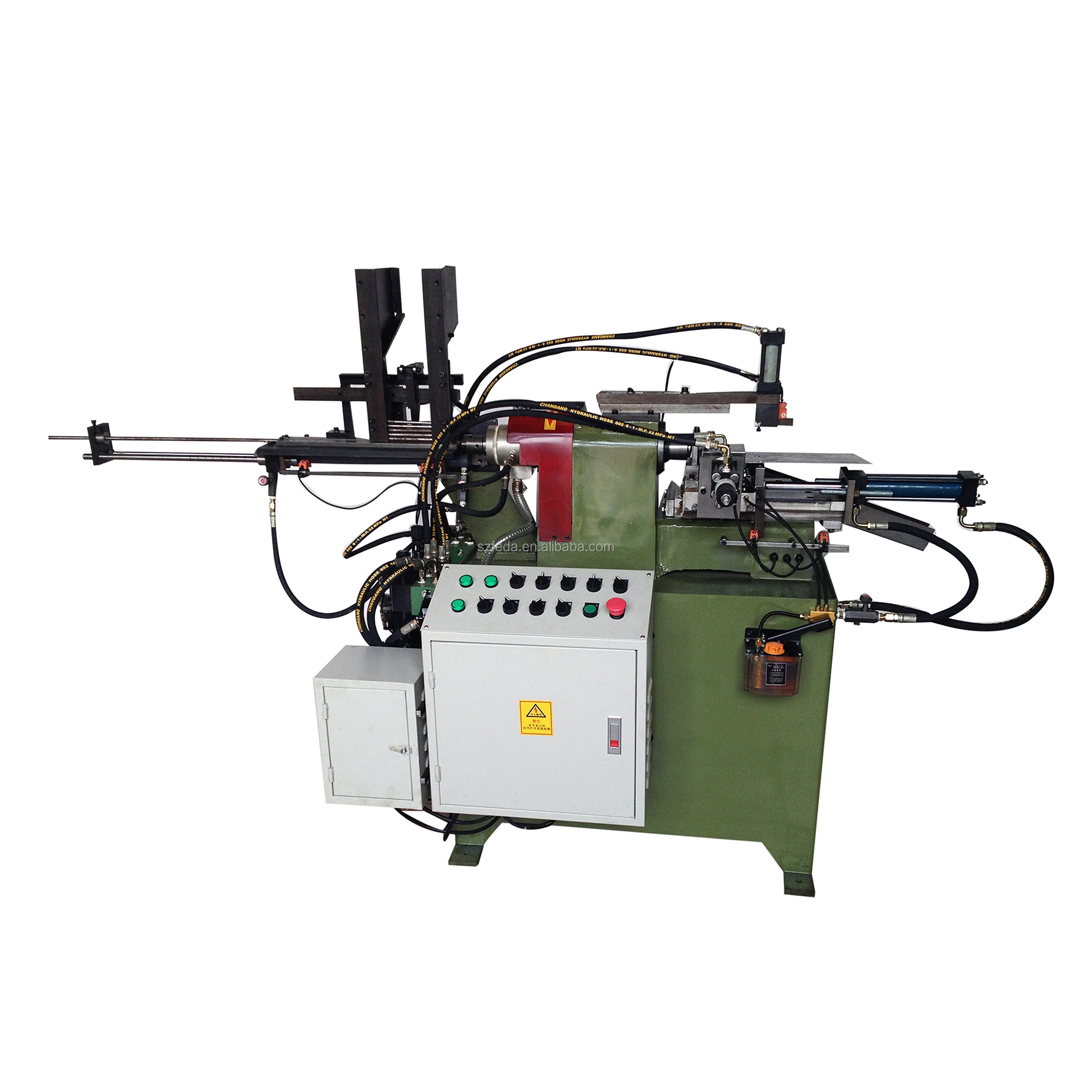

FEDA high speed automatic lathe machine automatic feeding peeling machine for bars

  • >=1 Sets
    US $8850.00
Model Number:
FD-300-2A
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
Automatic
Max. Swing Diameter:
30mm
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FEDA
Voltage:
380V
Power(W):
3KW
Dimension(L*W*H):
1530*950*1460mm
Weight:
750 KG, 750 KG
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Length of workpiece:
70-350mm
Diameter of workpiece:
5-40mm
Processing range:
Round bars
Motor Power:
3.0KW
Inverter Power:
3.7KW
Spindle speed:
2200r/min
Supply Voltage:
380V 3P 50HZ
Dimension:
1530*950*1460mm
Feeding method:
Backward feed
Supply Ability
Supply Ability:
10 Set/Sets per Week
Packaging & Delivery
Packaging Details
Wooden case
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 20 To be negotiated

FEDA high speed automatic lathe machine automatic feeding peeling machine for bars



Features:

1. High speed with automatic feeding devices

2. Backward feeding method

3. Hydraulic system for clamping bars

4. It is easy to operate and maintain the machine



Parameters:

Processes and efficiencyTurning cylindrical:  8-11pcs/ min
Polishing: 12-15pcs/min
Length of workpiece70-350mm
Diameter of workpieceΦ5-40mm
Processing rangeRound
Motor Power3.0KW
Inverter Power3.7KW
Spindle speed2200r/min
Supply Voltage380V  3P 50HZ
Weight750 KG
Dimension1530*950*1460mm
Feeding methodBackward feed

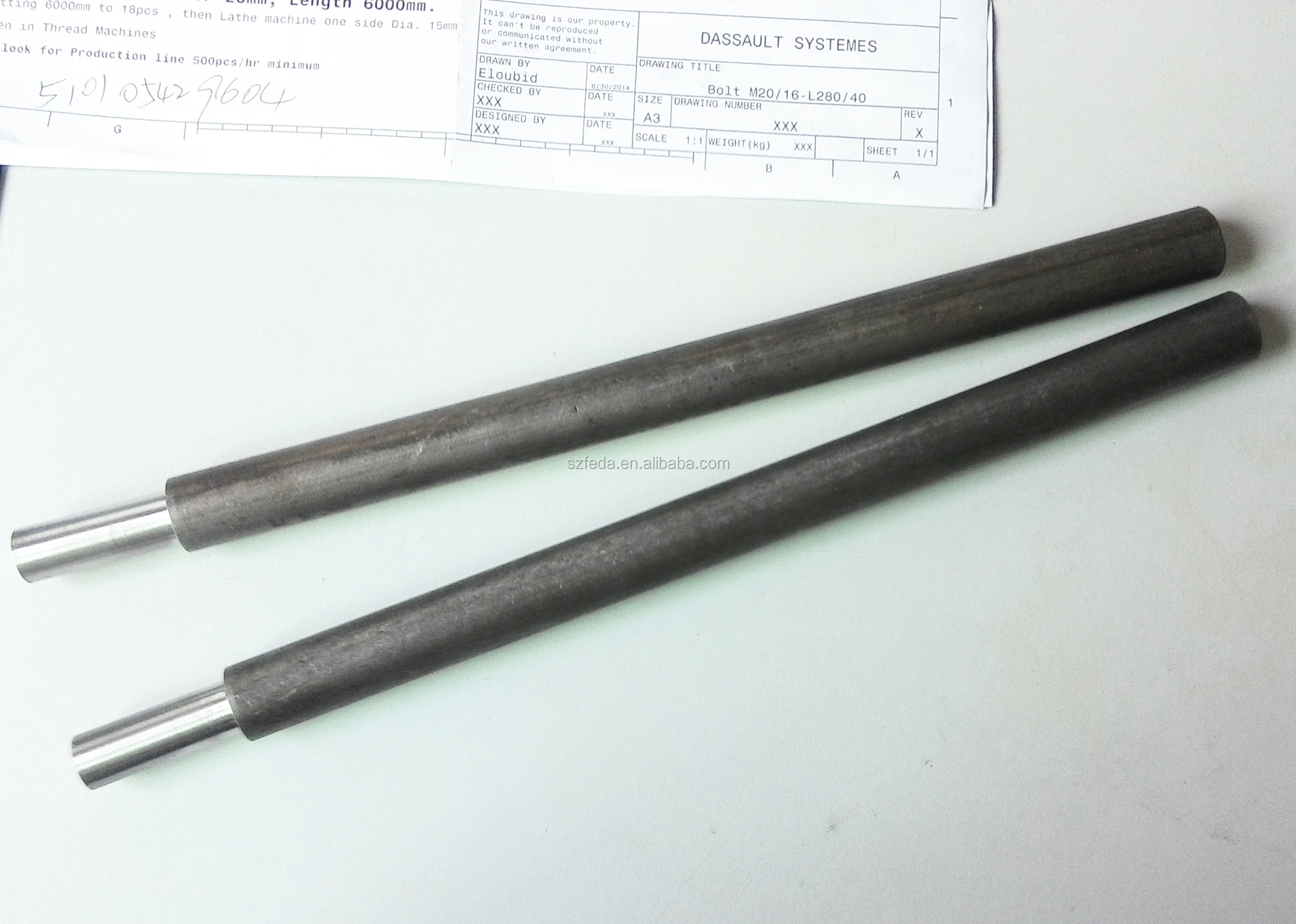

Pictures:
-01.jpg-02.jpg-03.jpg-04.jpgPictures:


Package:

IMG_2533


Our Services:

2015327102035IMG_1094
