FEDA automatic thread rolling machine anchor bolts making machine thread rod machine

  • >=1 Sets
    US $7850.00
Model Number:
FD-25S
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Fastener, hardware, etc
Production Capacity:
25-30 pcs/min
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FEDA
Voltage:
380V 3P 50Hz
Power(W):
4KW
Dimension(L*W*H):
1500*1380*1140 mm
Weight:
1750
Certification:
CE
Warranty:
12 months
After-sales Service Provided:
Video technical support
Diameter:
4-42mm
Pitch:
0.7-3.5P
Thread length:
In feed or Thru feed
Spindle speed:
36/47/60/78rpm
Outside diameter of rolling die:
135-170mm
Inside diameter of rolling die:
54mm
Thickness of rolling die:
110mm
Machine motor:
4KW
Hydraulic motor:
2.2KW
Rolling pressure:
12.5T
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Standard exporting wooden case with plywood
2. Log with Inspection Certificate of Fumigation
3. Shipping by Sea, Air or Courier
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 15 To be negotiated
Video Description
Product Description

Product Application

1. Bolts, screws, thread rods.

2. Pipe, tube parts for car, motorcycle industry.

3. Construction, Medical service, etc

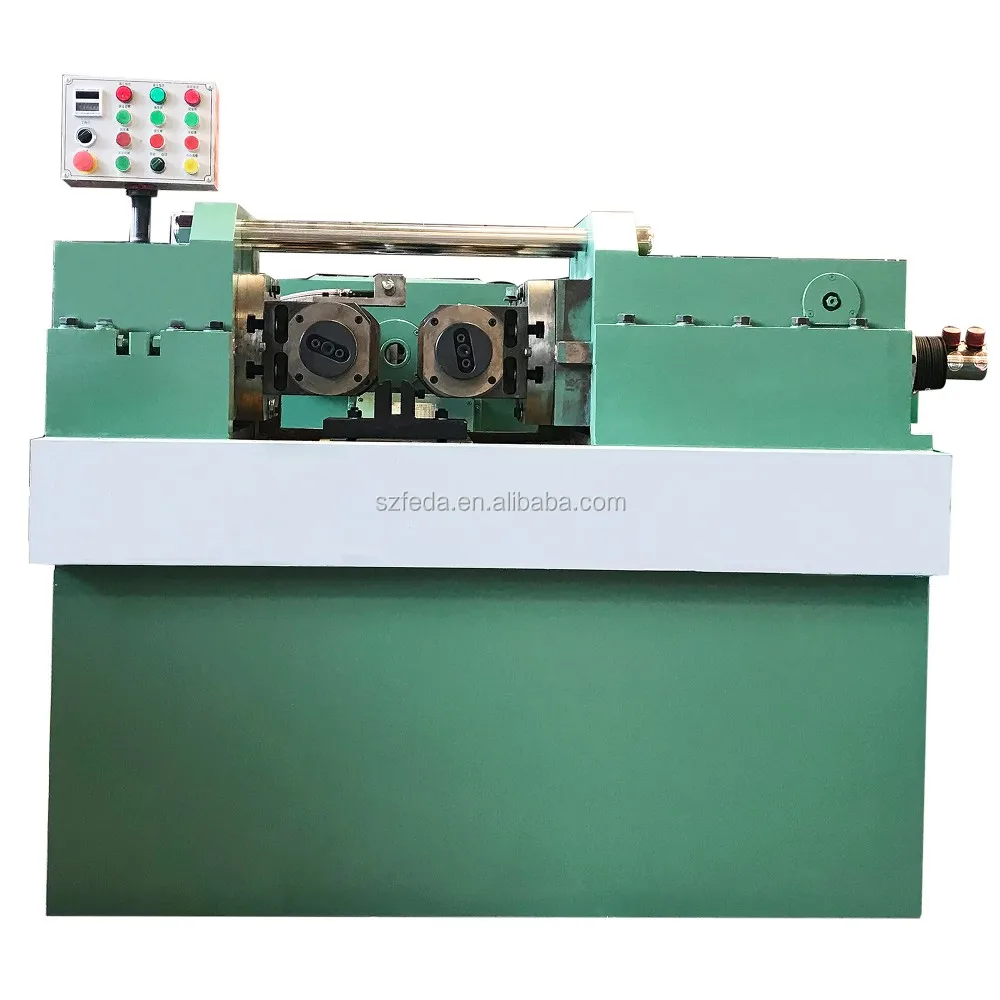

SPECIFICATIONS FOR FD-25S THREAD ROLLING MACHINE

Working range
Diameter
4-42
mm
Pitch
0.7-3.5
mm
Thread length
In feed or Thru feed
mm

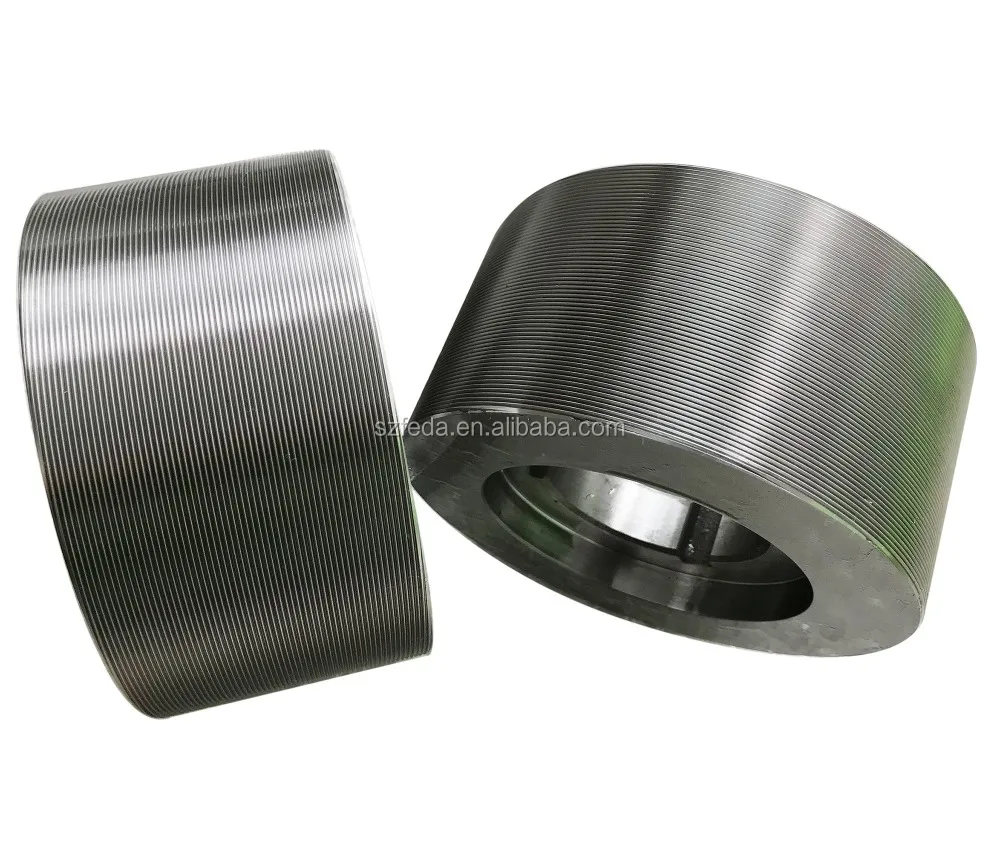

Thread rolling dies
Outside diameter
135-170
mm
Inside diameter
54
mm
Thickness
110
mm

Power
Machine motor
4
KW
Hydraulic motor
2.2
KW
Supply voltage
380
V

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

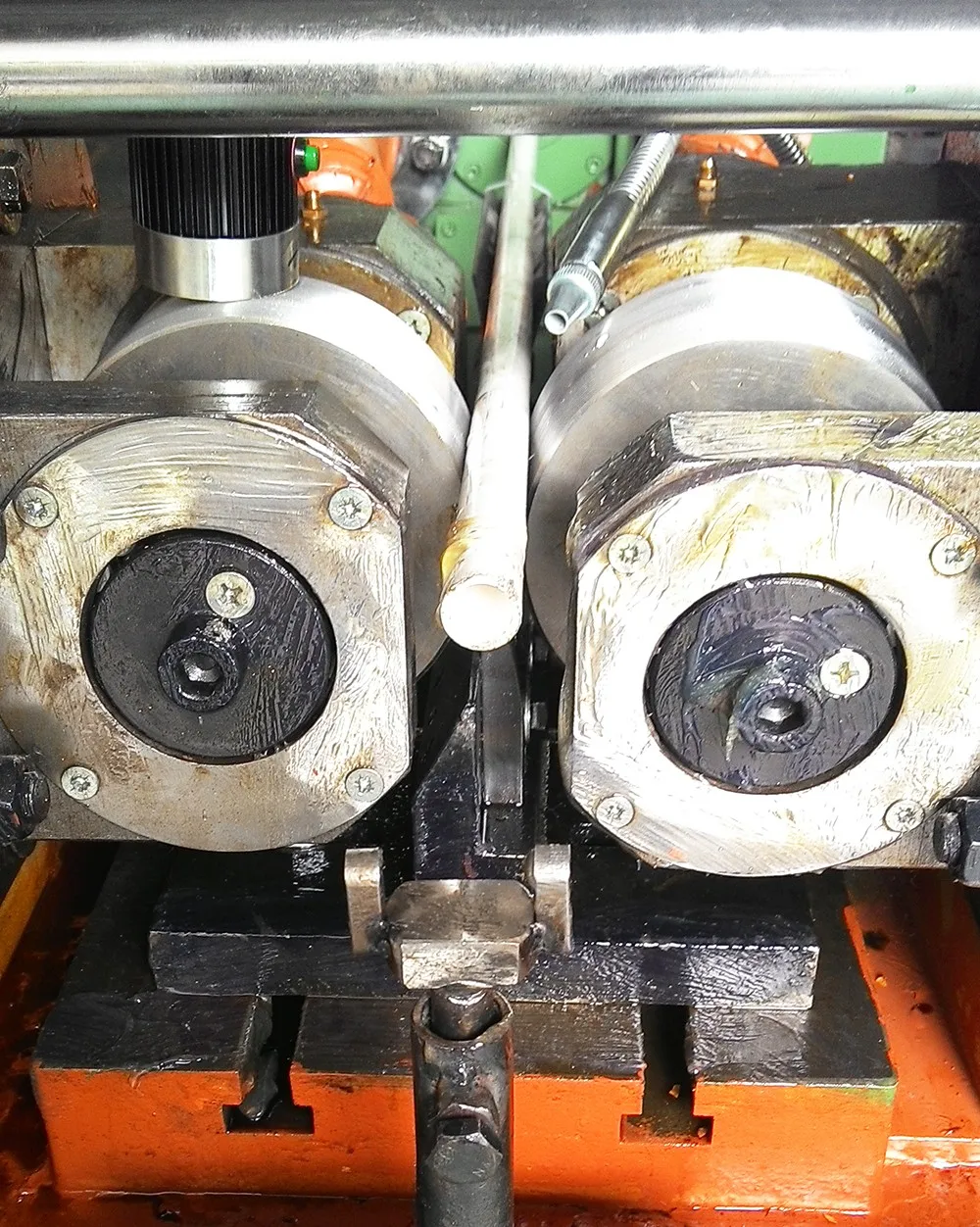

Detailed Images

Machine Parts

Name: Bearings

Brand: NSK

Original: Japan

High quality with long life time.
High wear resistance.

It is easy to change new one.

Main Features

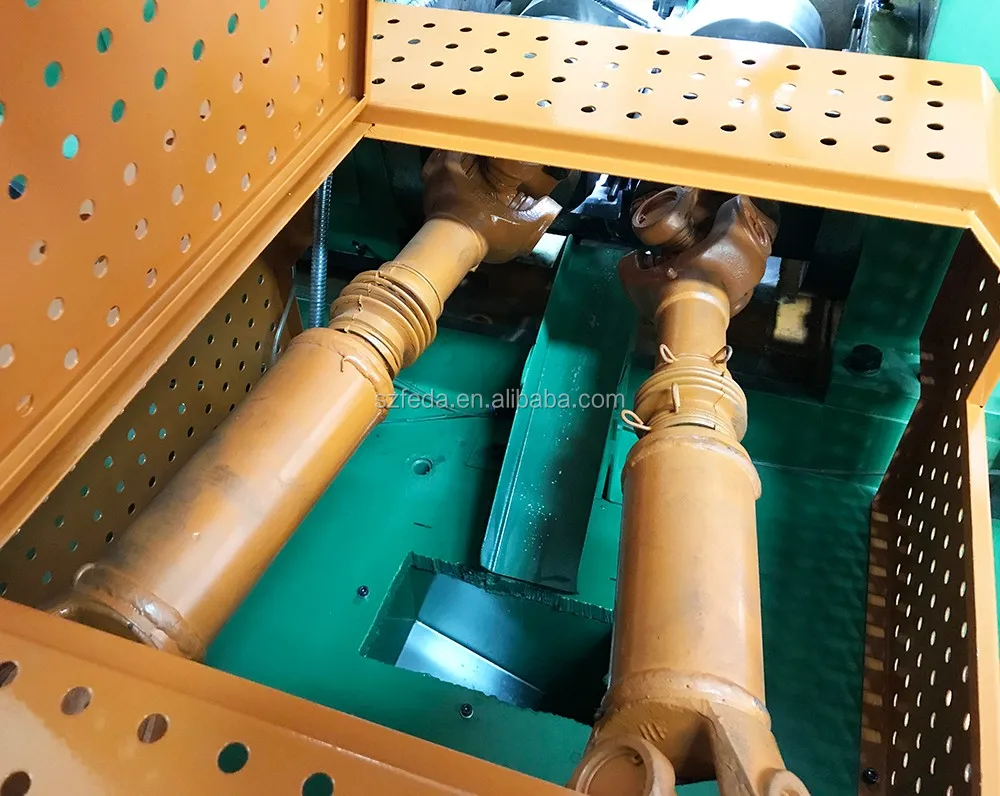

Name: Main shafts
Brand: Dongfeng
Original: China
High intensity after heat treatment.

Usually used for trucks.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1600*1480*1240 mm
Weight
1.85T



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
